Design Wan Malang

get homework from school ... I create the WAN network design in Malang, Indonesia.

This is my design

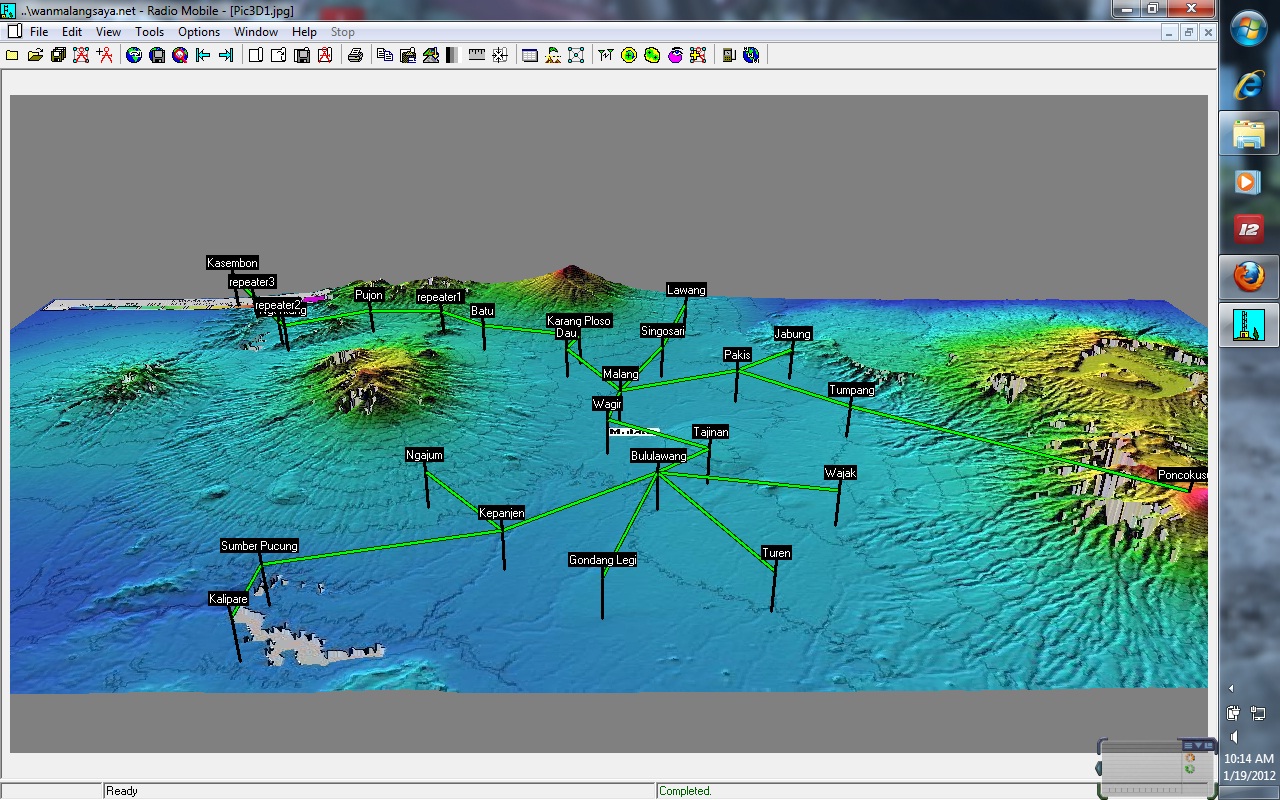

map malang radio mobile





Perda Malang
pasal 18 ayat 2 tahun 2011
region II max height tower 20-40 m
region III max height tower 90 m

Spesification network:


Area
Spesification Network
Kasembon
Tower= 65m
Frequency= 2412 Mhz
Antenna= Grid
Repeater 3
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Repeater 2
Tower= 72m
Frequency= 2412 Mhz
Antenna= Grid
NgantangTower= 72m
Frequency= 2412 Mhz
Antenna= Grid
PujonTower= 72m
Frequency= 2412 Mhz
Antenna= Grid
Repeater 1
Tower= 50m
Frequency= 2412 Mhz
Antenna= Grid
Batu
Tower= 50m
Frequency= 2412 Mhz
Antenna= Grid
Karang Ploso
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Dau
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Malang
Tower= 60m
Frequency= 2412 Mhz
Antenna= Omni
Singosari
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Pakis
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Lawang
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Jabung
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Tumpang
Tower= 45m
Frequency= 2412 Mhz
Antenna= Grid
Poncokusumo
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Wagir
Tower= 50m
Frequency= 2412 Mhz
Antenna= Grid
Tajinan
Tower= 32m
Frequency= 2412 Mhz
Antenna= Grid
Bululawang
Tower= 50m
Frequency= 2412 Mhz
Antenna= Grid
Kepanjen
Tower= 72m
Frequency= 2412 Mhz
Antenna= Grid
Ngajum
Tower= 60m
Frequency= 2412 Mhz
Antenna= Grid
Sumber Pucung
Tower= 45m
Frequency= 2412 Mhz
Antenna= Grid
Gondang Legi
Tower= 50m
Frequency= 2412 Mhz
Antenna= Grid
Turen
Tower= 45m
Frequency= 2412 Mhz
Antenna= Grid
Kalipare
Tower= 45m
Frequency= 2412 Mhz
Antenna= Grid
Wajak
Tower= 72m
Frequency= 2412 Mhz
Antenna= Grid


If
you want to design as well. You can:


Download software Radio mobile in here Radio mobile full

Download Malang map Radio mobile in here malang map

there are 22 districts with the size and height coordinates that have been standardized. You can also add your own. if still not complete.
